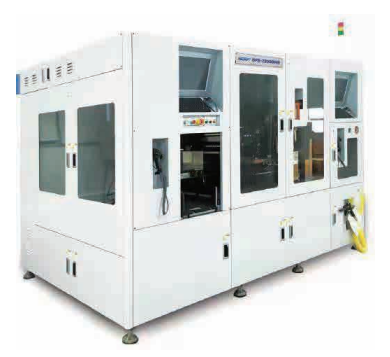

◎ Ball placement system for substrate strip or carrier boat.Convertible to strip or carrier boat.

◎ Applicable package: FBGA, PBGA & Flip chip

◎ Substrate format: Carrier boat or substrate strip

◎ Footprint:2800mm(L)x1800mm(W) x1870(H)

◎ Foot weight: 3500kg

◎ Placement accuracy: ±30um

◎ Fine pitch capability: 0.450mm ball pitch/0.200mm ball diameter

◎ Yield:99.98%

◎ Cycle time

   15-18sec (Single boat without flipper)
   22~25 Sec (Matrix Boat without Flipper)
   27~30 Sec(Matrix Boat with Flipper)

◎ Changeover time: Smart too kit design for easier device change
