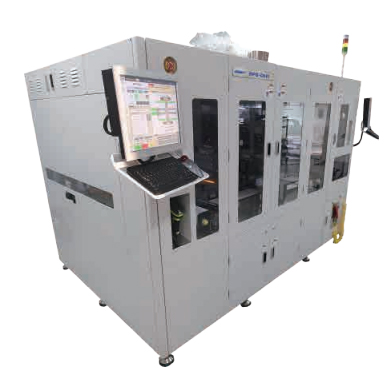

◎ Ball placement system for single unit package.Able to handle different types of balls as using dual-head

◎ Applicable package: FCBGA, HFCBGA

◎ Carrier format∶75-200mm in width x250-320mm in length

◎ Applicable ball pitch/size

   Ball pitch:0.4mm and over

   Ball size: 0.2mm and over

◎ Physical spec:3300mm(L)x2100mm(W)x×2336mm(H) /3500okg

◎ Placement accuracy: 30um @3sigma

◎ Cvcle time

   Min 16sec/boat or tray on 2 same tools

   Min 20sec/boat or tray on 2 different tools

◎ Conversion kit:Ball tool, Fluxtool, Lift block,Pre-aligner

◎ Changeover time: Less 15min

◎ MTBF / MTBA:168hrs/3 hrs

◎ Vision system: PRS/Ballamount in a balltray/Ball tool inspec tion/QC/2DID
